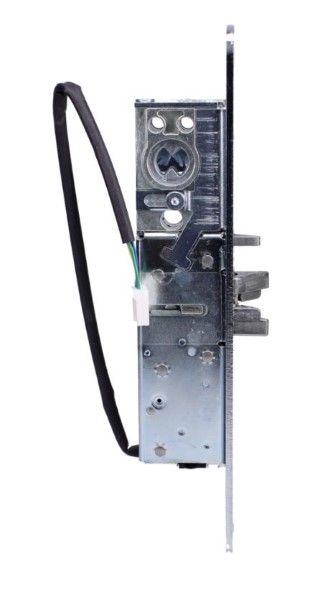

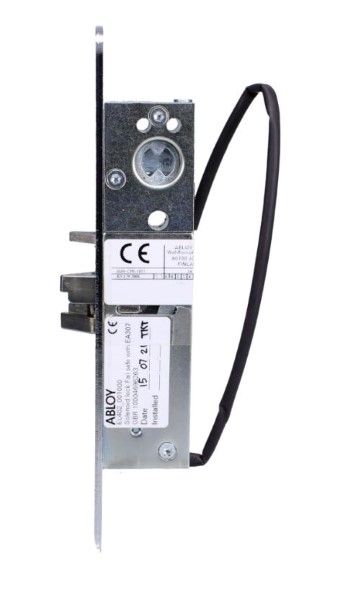

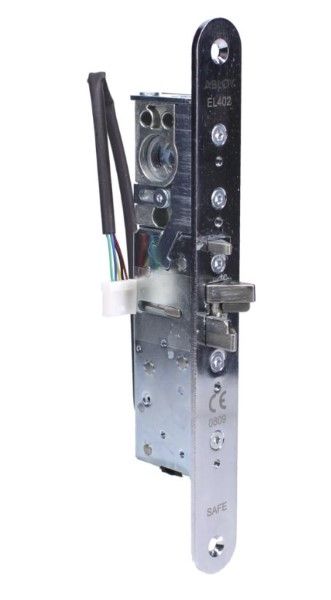

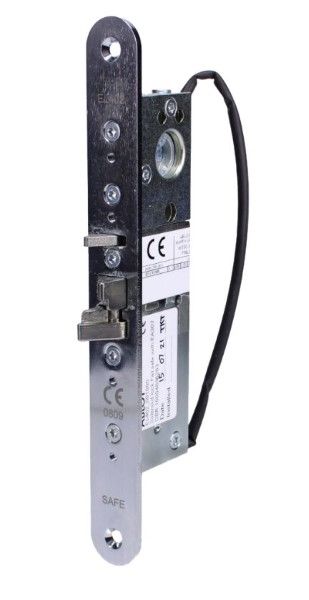

The Abloy EL402 F/UN Electric Lock is a high security lock (fail unlocked) suitable for narrow stile doors and has a steel trigger & deadbolt. Its double action bolt deadlocks when door closes and collapses into the lockcase as the door is opened (push or pull). The EL402 F/UN is non handed, suitable for horizontal installation and incorporates key/thumbturn override at all times. It is recommended that mechanical override is always used with this lockcase. Not recommended for use with fire route doors.

Features:
Steel trigger and deadbolt
Non-handed
Suitable for horizontal installation
Key/thumbturn override at all times
Double action bolt (deadlocks when door closes and collapses into lockcase as door is opened (push or pull)
Adjustable backset

Application: Narrow Style Doors

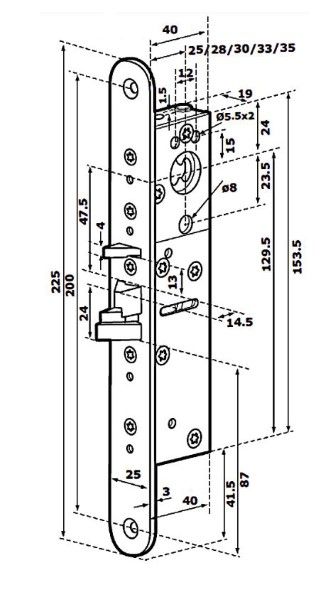

Backset: 25mm to 35mm
Body Depth: 40mm
Body Height: 153.5mm
Body Width: 19mm
Current Consumption: 0.55A @ 12V DC / 0.24A @ 24V DC
Faceplate Height: 225mm
Faceplate Width: 25mm
Finish: Polished Chrome
Fitting: Mortice
Input Voltage: 12/24V DC
Key Override: Yes (Cylinder Purchased Separately)
Monitored: Yes
Operating Temperature: -20°C to 60°C
Operation: Fail Unlocked
Weight: 1Kg
