Description

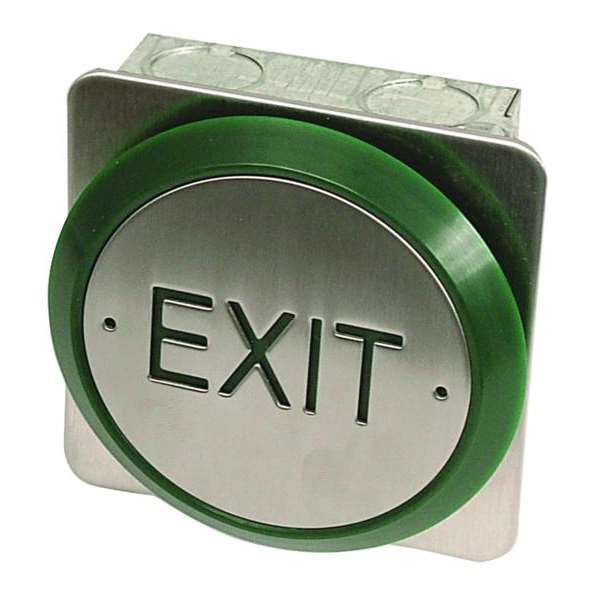

An ideal exit button for mixed traffic areas due to the touch anywhere action of the plate.
Features:
All active (touch anywhere action)
Low profile switch at rear of plate
25mm gang box & Security screws included
5 amp double pole contacts
All legends etched into the plate
2mm stainless steel mounting plates
Brand: Asec
Connections: 2 to 4
Current Consumption: 5A @ 30V
Depth: 27mm
Diameter: 87mm
Finish: Stainless Steel
Fitting: Surface
Illumination: No
Input Voltage: 12/24V DC
Operation: Momentary
Pack Quantity: 1
Rating: 5 Amps @ 30V
Weight: 170g
Width: 85mm
This item is available whilst stocks last. Please contact us for availability of additional stock.
