HAFELE 311.46.520 Concealed Mini Hinge 26mm 92deg Overlay (HINGE)

Description

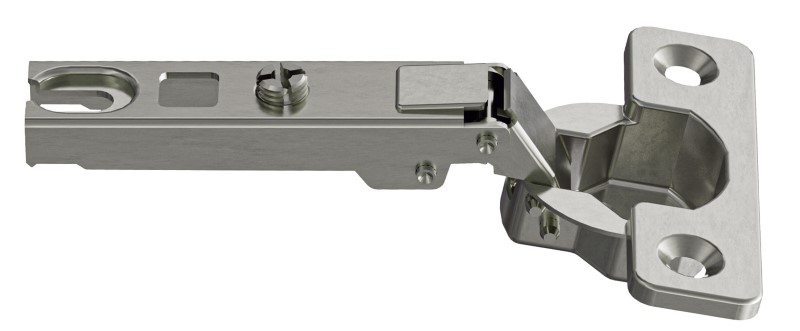

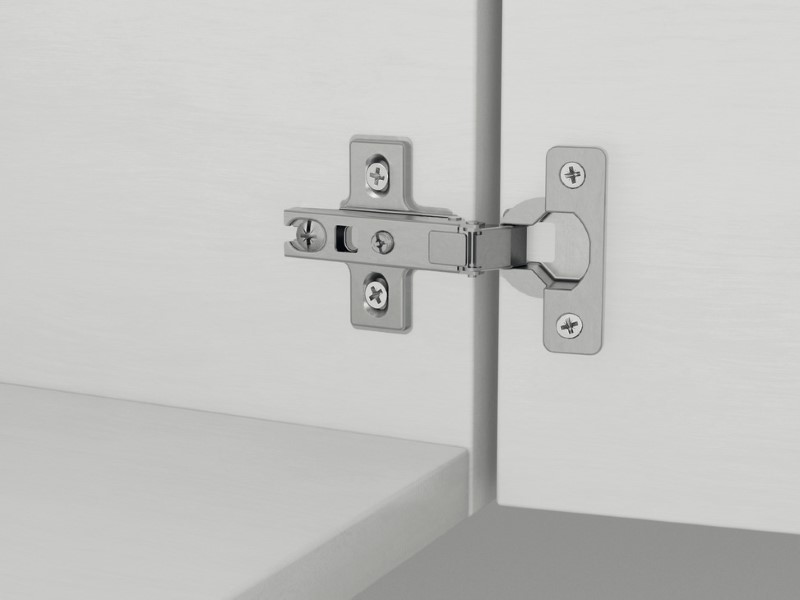

Concealed Cup Hinge, slide-on, 95deg, Full Overlay Mounting, for 12 – 22 mm Thick Doors, Häfele Metalla 300 A Mini

For small doors and narrow frames, With automatic closing spring, for screw fixing, drilling pattern 38/7.5.

Order mounting plate 311.51.802 or 311.51.803 separately, depending on requirements

Order 3.5 mm countersunk head screws separately.
