Description

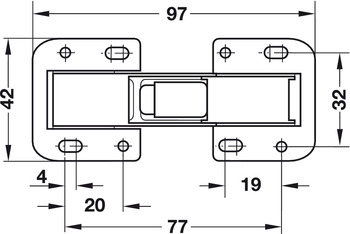

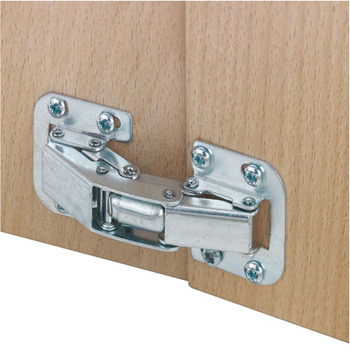

Concealed Hinge, 90deg, Easy Mount, Steel
Sprung
Easily installed by screw-fixing

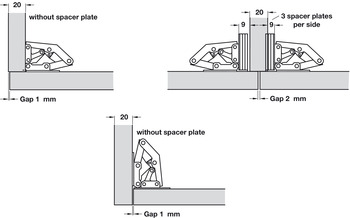

To hinge one overlay door, side or centre panel mounted or one inset door, side panel mounted
Opening angle 90deg

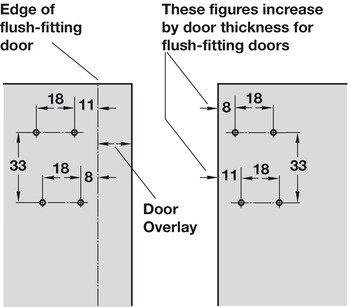

For minimum door thickness 16 mm, for side panels 16 – 22 mm thick
Use 3.5mm pan head screws.
