Description

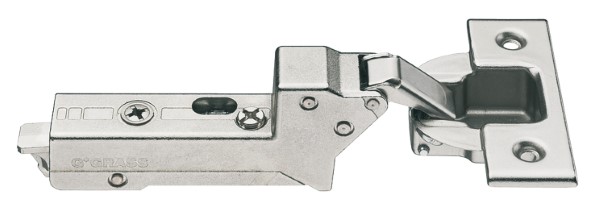

For standard applications: Ø 35 mm cup
With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)
With opening mechanism for comfortable opening of front panels without handles
Optimum gap dimensions up to 24 mm door thickness (for door thicknesses 24 mm and above, a trial fitting is recommended)
Concealed hinge version: Inset
Crank type: High Cranked
For door material: Wood
Door processing for assembly: with cup drilling
Material: Cup: Steel, Hinge arm: Zinc alloy
Opening angle: 110°

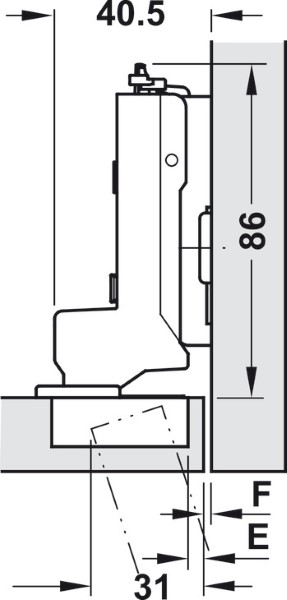

Cup drilling depth: 12.60 mm
Cup drilling Ø: 35.00 mm
Adjustment facility: Side adjustment 2 mm, Height adjustment -2.5 2.5 mm, Depth
adjustment -2 3 mm, Height adjustment depending on mounting plate
Installation: Door on cabinet without tools with clip system
Installation note: Set back mounting plate screw-on position by door thickness +1.5 mm.
110° High Cranked 110°
