Description
Adjustable for single or double beds, supporting fitting, also suitable for securing central tie bars by reversing the bracket allows for the retrospective adjustment of slatted bases for mattresses and upholstered furniture.

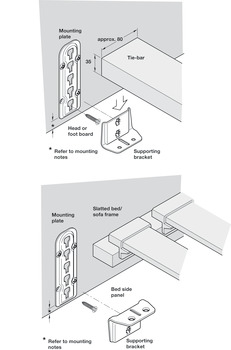

Installation note: When used on double beds with a 35mm thick central tie-bar, the mounting plates must be screwed to the headboard and the foot section 5mm higher in comparison to the side panels so that the supporting surfaces of the bracket and the central tie-bar are on one level.

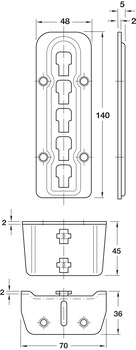

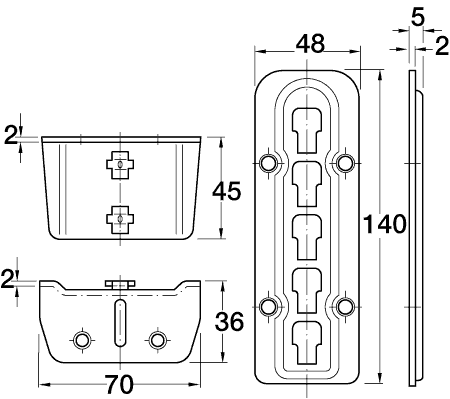

Height: 140.00 mm
Colour/finish: blue zinc plated
Area of application: Bed connecting fittings
Material: Steel
Adjustment facility: Height can be adjusted triple, four snap-in settings
Installation: For screw fixing
Supplied with:
1x Mounting plate
1x Bracket support
This item is available whilst stocks last. Please contact us for availability of additional stock.
