Description
Bearing guided intumescent strip cutter for routing the groove for intumescent strip in a frame or door.
- Three sizes available to suit 4mm thick strip of widths 10mm, 15mm or 20mm.
- Intumescent strip is used to create an effective barrier to both fire and smoke.
- Choose alternative bearings to suit other thicknesses of intumescent strip.

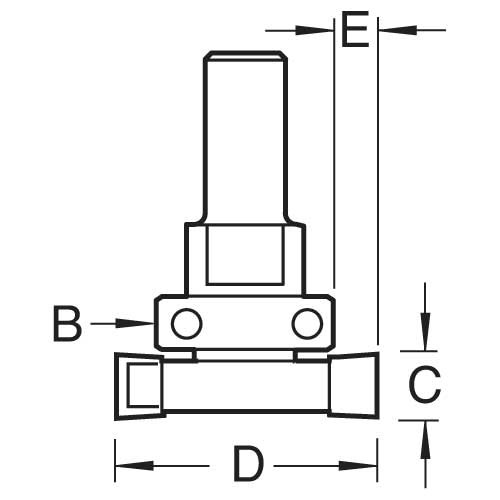

- D 40 mm
- C 15 mm
- B 32 mm
- E 4 mm
- Shank Diameter 1/2 inch
- Overall length 67 mm
- Fire check 45 minutes
