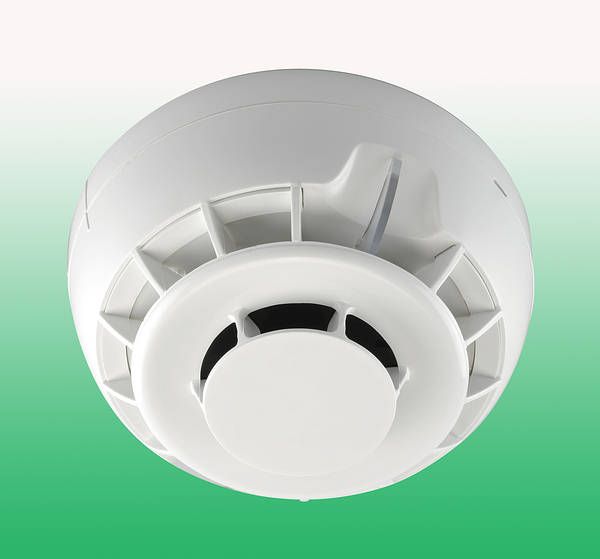

Optical Smoke Detector, 12v - No/Nc Relay in Base
The ESP Fireline 12v detector range allows a professional EN grade detectors to be added to virtually all 12v based intruder alarm systems.

Connected in the same way as a pir or mag contact to either a dedicated fire zone or any other spare zone on the intruder alarm panel the 12v detector will trigger the alarm systems sounders or in some panels a dedicated fire sounder.

In every case the utilized zone should be nominated as 24 hour arming. Following a fire event the individual detector that has been triggered will latch and display bi-directional indicators to show the location of the source of trigger. The range consists of four models, complete with relay base, to provide the perfect detector for varying locations. Elite Security Products. Professional grade detectors for use with intruder alarm systems. Constant 12vDC feed from alarm panel, no requirement for battery changes. Back up battery supply from panel

Interchangeable heads. Easy switch after area use changes

Latching with visual bi-directional indication

Low current drain

EN-54 approved

Test Facility - Simulated Smoke/ Heat

Optical Smoke Detector

Type - Conventional

Approval - EN54-7

Voltage - 9 - 30VDC

Standby Current @ 12v < 50µA

Alarm Current @12v 29mA

Wire Gauge 0.4mm - 2.0mm Twin

Operating Temp -10°C to 60°C

Dimensions:

Diameter: 120mm.

Height: 40mm.

Weight: 128g.
