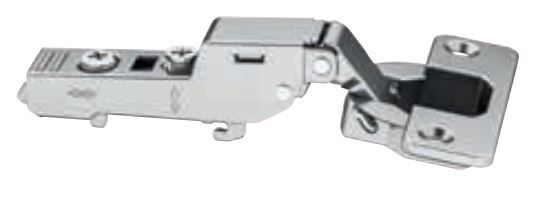

Screw fixiing cup, quick fixing arm, 45/9.5 mm screw pattern.

Order mounting plate seperately.

35 mm dia cup
Soft closing
Drilling pattern: 45/9.5 mm
Adjustment facility: Side adjustment 3mm. Height adjustment 2mm (via mounting plate). Depth adjustment + 2 mm

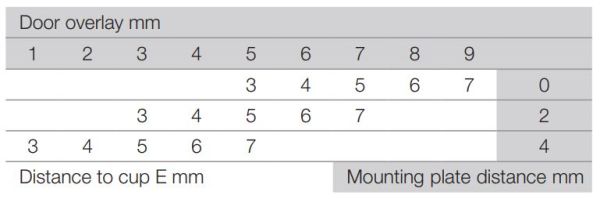

Overlay: Half
Hinge arm: Quick fixing
Cup fixing: Screw fixing
Type of closing: With integrated soft close
For door thickness: 14-26 mm
Opening angle: 110 deg
Drilling depth: 12 mm
