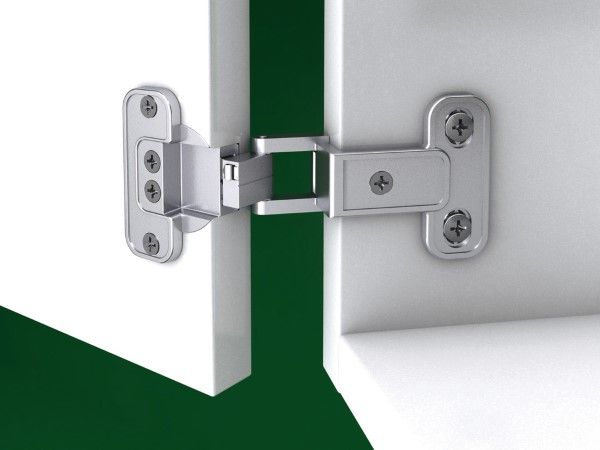

Ø 35 mm cup
.

With catch.

Area of application: For hinging one half overlay door.

Version: With exposed axle, with spring.

Material: Zinc alloy
Colour/finish: nickel plated
Opening angle: 230°

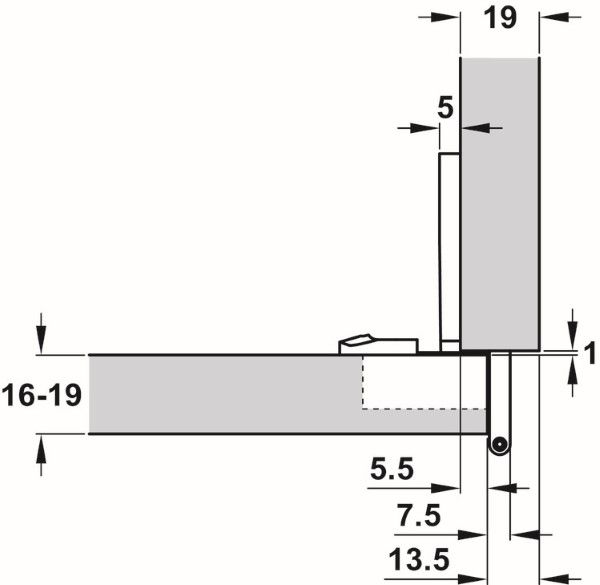

For door thickness: 16 – 20 mm
Side panel thickness, =19 mm
Cup drilling depth: 13.30 mm
Cup drilling Ø: 35.00 mm
Cup fixing: for screw fixing
Drilling pattern: 52/5.5
Door overlay: 5.50 mm
Adjustment facility: Lateral adjustment up to - 2 mmVertical adjustment +/- 2 mm
Installation, Screw fixing
